BATTERY SWITCH ON/OFF 275A 113550

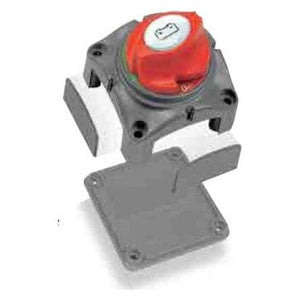

The 701 BEP contour battery master switch is a simple on/off switch which offers a number of unique features. The contour lock system allows it to be a stand alone unit or locked together with other switches. The 701 also features a control knob which cannot be removed whilst in the on or off position.
Interchangeable labelling system on the controll knob allows a full range of applications. Switch comes standard with the battery symbol label. Removable rear cover insulates the rear terminals against any short circuits and ensures the switch meets ABYC requirements. Removable side plates on 4 sides provides access for heavy duty battery cables.
Continuous rating 275 amps DC
Intermittent rating 455 amps DC
Crank rating 1250 amps DC for 10 seconds
Voltage rating 48 volts DC maximum
Terminal stud size 2 x 10mm
Moulded in high temperature , fibre-reinforced plastic
